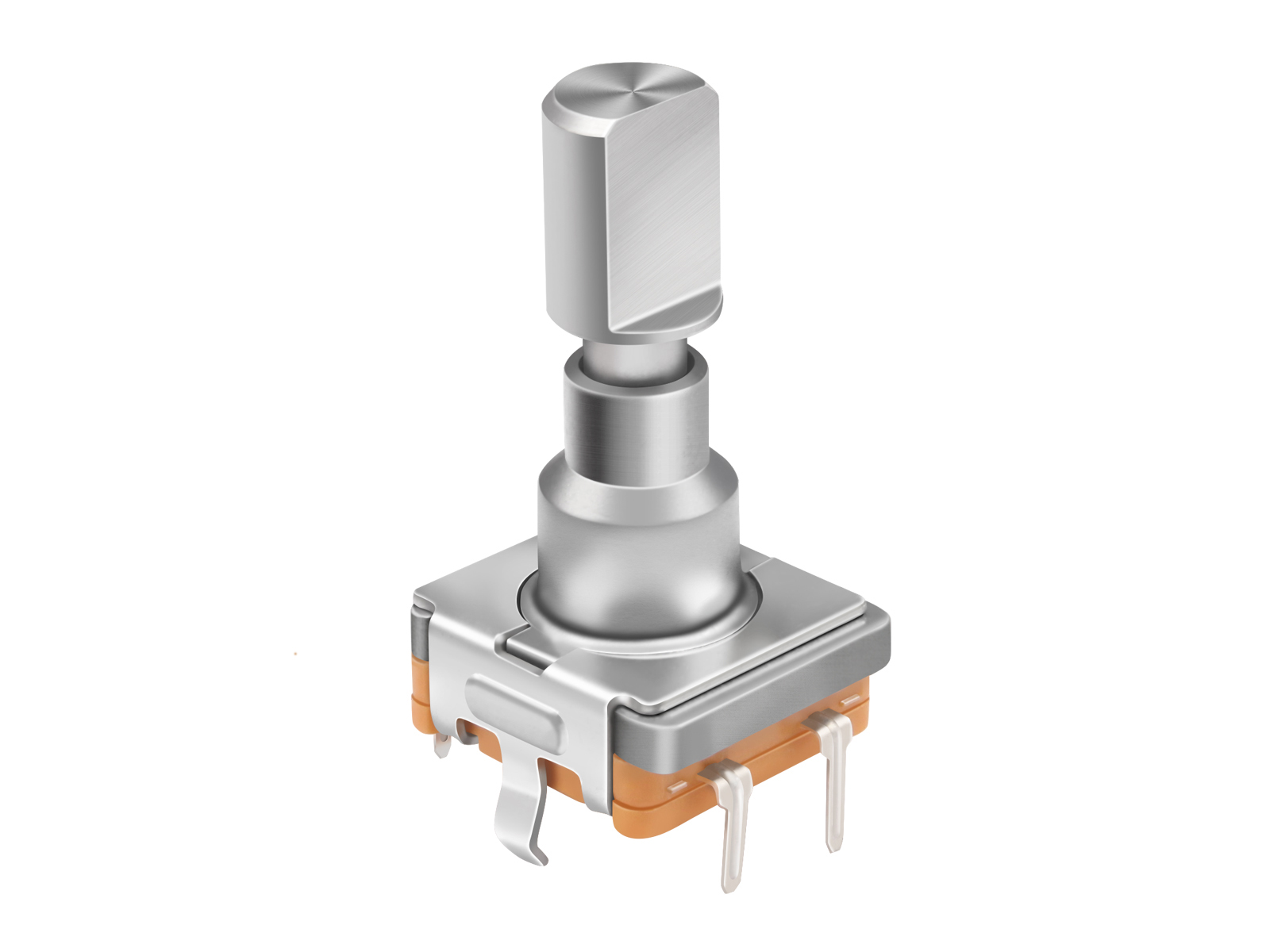

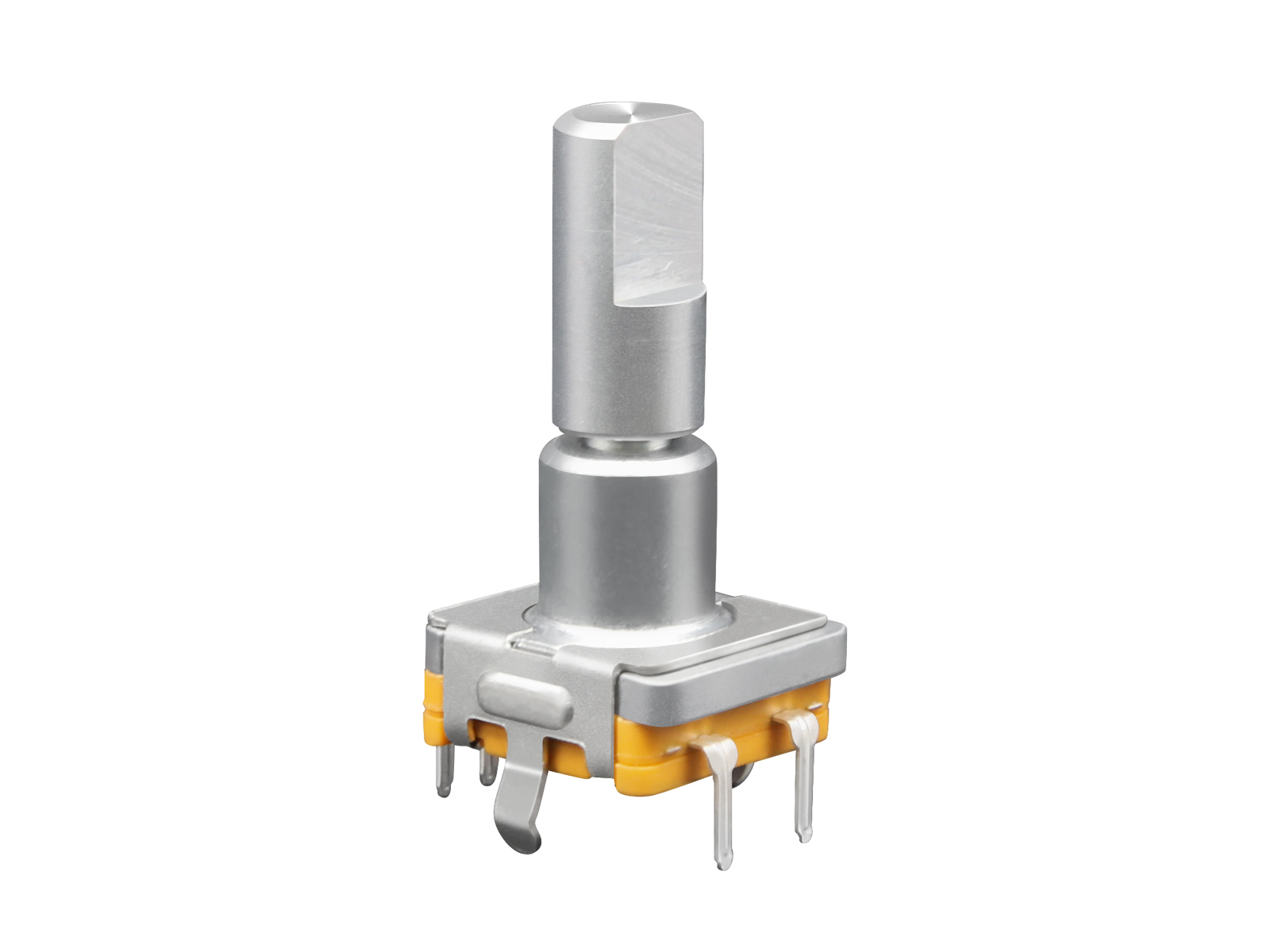

RS11 rotary self-return switch with push

MOQ	2000Get Latest Price
Main Specifications	Dimensions: 11mm Rated power: DC 5V 10mA; Operating temperature: -20℃ ～70℃; Rotational life: 30,000 cycles Min ; Push-on switch life: 20,000 cycles Min
Applications	Automotive electronics, amplifiers, home appliances or other electronic products;
Product Features	Low profile switch with reliable performance;Available with push-on switch (0.5mm travel or 1.5mm travel);
Functions	The main functions are function switching, page turning, frequency modulation, volume control and so on.

Contact now

download

Product Details

Company profile

FAQ

Inquiries about products

MECHANICAL CHARACTERISTIC

1. Rotational Torque: 30~300gf.cm

2. Rotational Angle: CW: 45°±10°; CCW: 45°±10°

ELECTRICAL CHARACTERISTIC

1. Rated power: DC 5V 10mA

2. Contact resistance: 1Ω Max

3. Insulation Resistance: 10MΩ 1 Minute at DC 300V

4. Dielectric Voltage: 1 Minute at AC 300V

ENDURANCE CHARACTERISTIC

1. Rotational Life: 15,000 cycles Min

2. Push-on Switch Life: 20,000 cycles Min

PUSH-ON SWITCH CHARACTERISTIC

1. Operating Force: 300~900gf.cm

2. Contact Resistance: 100mΩ Max

3. Power Rating: DC16V 10mA

4. Insulation Resistance: 10MΩ 1 Minute at DC 50V

5. Dielectric Voltage: 1 Minute at AC 300V

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

rotary self-return switch with push

We are Rotary switch manufacturer,have all kinds of different self-return switch, contact us for you quickly recommended selection.If you need more details about the electrical and specification parameters, please leave a message below or contact us.
